Tuesday, May 23, 2017

Midgauge Merge of Two beanie designs elements into one beanie on the machine


HybridSJ's Quarter Crown Beanie idea
Okey dokey, I'm workshopping a hand knit beanie pattern, Two by Two Basic Beanie to a machine knit version. The designer, Kate Gondwana, has given me permission to use her stitches and cm, which I've converted into rows, with the understanding that I'll link them to this blog post. Thank you Kate, having your numbers makes my life easier.


2nd mock rib, 3rd size exactly

My midgauge is a KX350, but I'm sure SK860, LK150 etc users can put their own 8ply/DK yarns to good use, with the added bonus of using up some of that fluffy yarn that people seem to think I need their mistaken buys in days gone by.
T5: The sts and row measurement conversions are taken from the Two by Two pattern for overall size, with Ravelry user HybridSJ's Quarter Crown for midgauge machines. The quarter crown hat pattern will be issued by HybridSJ, but it's not yet. I'll link it when it's done.
This is straight from Kate's pattern:
Size
Head Size
DK/8ply

Size
Head Size
DK/8ply
baby
40cm (16”)
55m/60yds

older child
52cm (21”)
90m/100yds
toddler
45cm (18”)
65m/70yds

sm adult
55cm (22”)
110m/120yds
younger child
50cm (20”)
75m/80yds

lg adult
60cm (24”)
130m/145yds

1st size: 72 sts - these were too small for the need this time
2nd size: 80 sts - not needed this time.


3rd size: 88 sts +2sts. first with hung hem and the second with mock rib


4th size: 96 sts +2sts . Pink fluffy T7 and purpley/ bluey/pinky mottle.
5th size: 104 sts +2sts. Deep pin with 16row mock rib - too wide
6th size: 112 - olive green. Could reduce the rows before crown by 12 if no turn up is needed. A 2x1 relatched rib - hung hem would be better, not worth the bother of relatching IMO.


Cast On: all PLUS 2 for seam.. 72, 80, (88, 96), 104, 112 sts. RC000
Ribbing: If using a ribber 2/2 (not sure about these numbers: T7/7)  8, 8, (10, 10), 12, 12RC (no reset)
or double for hung hem but -1 RC, do +1 or 2MT then RC000 the either same yarn or I did an extra two rows on fluffy yarn, it didn’t seem to have the stretch - maybe do at MT+1? next time? It certainly did use up some scraps. In the end I liked the mock rib best, no extra rows needed.
Continue to RC: 28,34, (38, 42,) 50, 52 RC, where we leave Kate's pattern.
(until hat measures: 9.5, 11, (12, 13.5), 14, 14.5cm, from the cast-on edge).

HybridSJ has an interesting Quarter Crown hat idea  that I’m doing instead of the decreases in the hand knit - we all know what a pain that is:

The Quarter Crown Hat (please see these detailed instructions for clarity- I dilute them down to suit me).

These are the needle divisions, starting from the right set (bold) and then the next section:
Size 1: 74 = 19/18/18/19 (+2 each end 1st and 4th set for seaming)
Size 2: 82 = 21/20/20/21 (+2 for seaming)
Size 3: 90 = 23/22/22/23 (+2 for seaming.)
Size 4: 98 = 25/24/24/25 (+2 for seaming.)
Size 5: 106 - 27/26/26/27 (+2 for seaming.)
Size 6: 114 = 29/28/28/29 (+2 for seaming)
Put all but last 19, 21, (23, 25,) 27, 29 in hold.
-1 eee 2R with extra ONE st on outer ends.
then till 5sts left on both ends

Just make sure that you leave enough yarn when starting the next section to sew in both ends, I left one of the needles on that first row to make sure I didn't have 2cm, oops!!!

and 4sts left on the middle two.
take them off with needles
Next two sections are 18, 20, (22, 24,) 26, 28 sts, reduce and at the same time, SAYG inside seams.
Last 19, 21, (23, 25,) 27, 28 as first, but the last three sts are on the LH side.

All sizes: 18 sts remain, leave a tail to pull in remaining sts and sew seam.
Thread the 18 sts with tail end of yarn, sew seam, weave in ends.

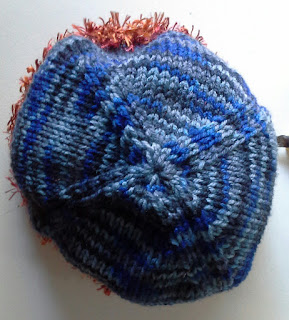

This was the first one - not enough rows before the crown
2nd one, Hung hem, with the adjusted rows before the crown
I think the fully bit is too wide, more like a brim




1st mock rib with 16 rows - too many but
I liked the mock best

Thursday, May 4, 2017

Basketweave Stitch on the Machine



I wanted to see if it was feasible to do this stitch on the machine, so I fired up the SK155 and gave it a burl. It's basically a single stitch cable. Youtube has handknitting instructions. My first pitiful attempt was on the 10ply dark brown Bendi wool, which was a difficult colour to see were it all went horribly wrong while I was doing it, and I used T9 for that samples, good for stitch size wise, but otherwise no - not really a workable swatch...

Machine: SK155 Chulky 9mm
Yarn: 12ply Cleckheaton orange wool that Bev gave me - yarn needs to have a bit of give.
T10: really do need a large stitch size to be able to cope with the transfers.
Cast on: I did a crochet cast on over 20 needles. The handknit instructions say an even number of stitches.

Row 1: after crochet cast on,knit one row

Row 2 Prep: Transfer EON to the right, skipping over needles still in work
Needles 1 and 2 cross, 2 goes over 1.
Row 2: all stitches transferred (watch out for the gatepegs)
Needles 2 and 3 cross, 2 goes over 3

Row 2 knitted - It looks like the sts are in "pairs"
which get split up to the adjacent pair each row

Row 3 Prep: On LH side move last sts to adjacent needle
then EON transfer over remaining needles, to the right.
The last stitch each end isn't cabled,
just moves one needle in or outwards.

Row 3 transfers complete

And that's it. Each end's needles go in and out of work depending on the transfers.
Row 1, transfer EON to the left, knit one row - a one stitch cable.
Row 2, transfer first stitch to adjacent needle, then transfer EON to the right. One stitch on each end is not transferred.

Repeat these two rows. cabling first to the left, then next row to the right, alternating the end needles in and out of work as required. Carriage is going to the left - transfer to the left, Carriage is going to the right, transfers go right. The only thing I'd do on a piece of knitting is on the very last row, knit the MT, in this case it was done MT+4, so that final row should have been T6, it would look better.

I'm not sure about this, but if I wanted to sew it up, I'd might try an extra stitch each side to make it easier to do that. That's not what I did on this sample and it will be a much bigger stitch. Now I've had another look, I think it would be easy enough to seam it on thicker wool. Maybe if I decided to do this on the standard 4.5 machine? it would be more difficult to see? Maybe I'll do that another day.

Anyways, here's the sample, I was fiddling around with dropping down to relatch, sometimes it's quicker to do that than drag out the ribber for a little bit of ribbing on not many rows.


Added the tape measure for reference.

What it looks like on the other side


Sunday, April 16, 2017

Bulky/Chunky Easy Beanies

I did these at the Show. They were quick and easy to demo:



The 8ply acrylic is from Eleanor - who got it from a deceased estate's relative to "do something with".
Green and black

Rolled hem, took me 15 minutes and they stayed and watched me do it:
T3 80sts however you like.
60 rows
Transfer 1x1
T2 2RC
T0 2RC
take off with double eyelet tools treading through the loops,
draw up and sew up. about the first 10 rows reverse the seam.
37.3gms used

Mock rib took a bit longer first lot watched me do the mock then left when I was joining it. The next lot watched me finish it - probably about 30 minutes with explaining:
T3 80sts on WY, ravel cord row/s
drop 1x1 and continue EON 30 rows
pick up EON loops from ravel cord RC000
50 rows
Transfer 1x1
T2 2RC
T0 2RC
take off with double eyelet tools treading through the loops,
draw up and sew up. about the first 10 rows reverse the seam.
Used 46.5gms

Wednesday, February 8, 2017

Racking on the Passap

Gee, I've only had the book since 1981.. Without any further delay - I present pattern 38 from the little purple book. I know, I know, over time, the cover goes pink. However, my  little purple pattern books live in the bookcase and are still purple.
I used 2ply lace weight wool.
160 FNR L80/R80
Handle down, standard circular cast on
1R N/N 2/2
2RZ CX/CX 3.5/3.5
1R N/N 4/5
RC000

Straight into Pattern 38
Rack L EX/EX 1R
Rack R EX/EX 1R
Rpt 7 x 14RC - locks are on the Left

Rack L EX/EX 1R
Rack R EX/EX 1R
Rpt 7 x 14RC - lock are on the Right

And here it is finished.



I managed 540 rows before the wheels fell off.

What not to do again...

  • reset the counter back to 000 instead of xx rows. Restart
  • forget to stop at row 14, try undoing and if all goes well, continue.
  • to rip back to row 14, adjust the counter CAREFULLY to make sure it's forward twice per rip. hold the yarn in the right hand across the left, knuckles second joint flat against the striker plate and pull the yarn, moving the left hand rapidly back and forth, keeping the needles from popping up. If they do, put them back with the eyelet tool.
  • it was beyond my ability to rehang when I dropped stitches. Restart.

  • GX/GX is not an option unless the work it weighted. No, it all gets into an appalling mess. If there is a knot and going back is what is needed, make sure a good hold on the fabric beneath before moving the GX/GX - if not able to do that - off and start again.
  • Lose track of rows and or racking - restart.
  • I tried out the N/N row for the 15th row
  • And of course I left the N/N for 14 rows and left the EX/EX for the 15th. I really think that it was enough to rack the right way without fiddling with the N/X lever.







Monday, February 6, 2017

Tuck Stitch Baby Blanket with cards from HGMKS Ch III 28, 39 & 43.

I've punched out some new cards from The Harmony Guide to Machine Stitches (1988-1990) Chapter III to use in blankets.As far as I can determine, the book will be covered by copyright until 2060, 70 years after the last publication. Or from the author, and I had no luck finding other than Barbara Devaney is the compiler of the publication. There seems to be enough second hand books around to buy a copy. I have used a lot of patterns from it.

So for this exercise, I'll put the card I've punched, the number in the chapter, the Left and Right needle position and approx rows and the mini card I started and ended with. The book is there to use the patterns there is no written restriction for any use of the patterns, so I'm happy that I make the blankets and they get sold at Hospital gift shops. Nowhere says we can't sell the finished goods.

Now onto the biz of making Two hour baby blankets from Chapter III.

Out of a leftover scrap, I punched a 24 row card 1, which I snap on after lining it up so the tucks flow into the main card for any pattern with 1x1 changing every row, Card 1. And a 30 row one for the 1x1 changing every 2 rows, whichever worked out with the pattern.

Match the tucks in the pattern to the mini card and snap into position on the tuck card. Knit around until the snapped on section is in a good spot to take of and join the rotating card.

When the row counter is somewhere between 500 to 550 ish, separate the card again, line up the mini card making sure the tucks flow, then when it's though the machine.
knit two plain stst rows.

I've used:
2 ends Cashmillon acrylic 2/28 in various colours just under 200g total, 100g each cone..
T6 on Std gauge SK280
Between 550 and 580ish rows before clipping on the mini card to finish the blanket.
I like to crochet cast on and around the gatepost cast off with 2 rows stst after CO and CO. (Cast on/ off your preferred method, I like what I do)

Load the mini starter card clipped to the punchcard lined up only, leave the ends free and get knitting.

Card 12: L98 R97, RC 590
Card 12: 24RC 1x1 1row, L98, R97, RC 590

Card 39: 30RC 1x1 2RC, L97, R96, RC580/592

Card 43: 30RC 1x1 2RC, L97, R97, RC632

Card 43: 30RC 1x1 2Row L97 R96 RC632










Card 39: 30RC 1x1 2RC L97 R96 RC580/592

Edge mini card flowing into pattern
If I get around to making baby blankets with any of the other cards, I'll add them

Saturday, January 28, 2017

Tuck Stitch Baby Blankets from the Harmony Guide


Last year in the last days of the Olympics, I punched out some new cards from the Harmony Guide to Machine Stitches from Chapter III Tuck stitch patterns to use in blankets. The book is out of print and after many, many attempts at finding out WHO know owns the copyright - nope. Noone knows. As I'm taking liberties with one chapter of the OP book, all is well.

I didn't realise I didn't finish the blog post, still in draft - trying to track down the copyright, it was, but I did remember that I didn't put up the numbers for my newly punched cards. Which is why it wasn't on the blog when I went looking for it. Promise I will press Publish this time!

The Harmony ones have the two row tuck so I made a 30 row one for both ends. The added bonus is that it can be moved over the tuck pattern to line up the start line in the middle of the design. More on that latter, when I get to it.




The first two are the Anne Alexander and Gladys Goodie's patterns with the small Card 1**. I line it up and put it at both ends, making sure the tucks line up.

** For both these pattern cards, I punched out a 24row version of Card 1 (a 1x1 tuck). I clip it onto one end, making sure the tuck panels line up with the tuck strip, Cast on and keep knitting until I can unclip the mini card 1, join the card as normal, then do the rows I want - somewhere between 559-600 usually - then still making sure the end of the card lines up- clip on the mini card till it's finish, then cast off.

The Harmony ones are two row tucks so I punched a 2 row alt tuck, 30 rows in all. It snaps onto both ends, but can also be place on a different point in the card to alter the start and finish point.

I will point out that by the time I finished punching out all of these, I was wanting a Brother electronic machine, and said so to my friend Beverley who said: Did I really want one or was I just punch drunk. Funny lady. Of course she was right, but now instead of two patterns to choose from for the baby blankets I knit, I have 10. Very happy I spent the Ravellenics on punching out new cards.

Sunday, January 22, 2017

brother KA7668 Needle Selector for KX machines

Beverley has this little brother plastic KA7668 needle selector. I'd never seen or heard of it but, she assured me it existed AND it was for the KX395 convertible 4.5 and 9mm machine. AND would it work on the KX350 7mm machine?

It only goes from RIGHT to LEFT.

So it's in my hands for a whole month - but that's besides the point. What Beverley was wanting to know was:

Does it work in the KX350 7mm machine?

So first thing I did was turn it over and measure it's undercarriage.


The instructions say for the 9mm, 8 needles must be hand selected into B postition and 16 ndls for the 4.5mm setting.. interesting thought me.. why not 10? or 20? making the working mechanism 9mm, but no 9mm x 8 is 7.2cm - so I'm thinking maybe it will work on 10 preselected on the 7mm. I was able to test out the why later..

Now for the photos to show how it all works.

video

First I tried on a small selection, testing out the 10 needle pattern







Next, I tried the whole bed, still with the first 10 preselected, needles must be in B and D



 in two setting, one was 1x1 rib and the other a varied rib


And neither worked on all needles in work.






But putting the very first needle out of work did, but not with the 3x1 rib



It was not necessary to ONLY choose the first 8, 16 or 10, repeat of the pattern for 1x1 rib, a ruler's worth of preselected worked just as well, the only time you'd need to do this is for when you wanted the pattern to repeat differently. Getting a 4, 8 12 etc pattern wouldn't work on the 7mm machine, it works in multiples of 10. But it makes sense of the 72mm measurement for 8 or 16 needles on the other machine, and this one would have to have the long plastic tongue measure 56 mm. And no I'm not going to have at Bev's doodad!

I can't say if the very first needle would have to be out of work on the KX395 convertible, but it works a treat on the KX350 with one less needle on the right.

And so now I can say.. YES Beverley, it works perfectly on the KX350 as well for 1x1 and 3x2 rib and any other 5 pattern repeats only. Thank you for the lenda and an interesting morning..


Sunday, January 1, 2017

Smocking from Knits for Joy 101 Experiments




I go to Fay Butcher’s Passap club meeting for Duo 80s. and she had a wonderful adaptation of the Silver/Studio SK machines pamphlets 101 Knits for Joy. These pamphlets are all well out of print and so I can cite the source, not me, not my work, I can share the document with you.
Here is a scan of the whole pamphlet, a resource no longer available and I know I certainly haven’t seen a live one of any of the Purls of Joy, never knew they existed.






For smocking on a Passap, here are Fay’s ideas:
Use one end rayon and 2 ends boucle, or similar thin yarn.
Working on the back bed, use the cast on comb on your waste yarn, black strippers and drop the bed when forming the pulled up smoking.
Using the adjustable selector ruler (WMK61) set at 5:1 as there will be five spaces between, pushing up the pushers to identify the correct needles.
Being clever Passap knitters, the rest is easy to follow along with. And here is what I was experimenting with on my SK280 and intarsia AG20 carriage.

The instructions are fairly simple – although I did come unstuck in the beginning. Oops.
Start with waste yarn, ravel thread
6 rows Col 1 (red) and then 4 rows Col 2 (white)
That’s the start only.
Next bit is the repeat:
6 rows Col 1 (red)
2 TWO rows Col 2 (white)
Then pick up the loops on the previous white on needle 2, then 8, 14, 20, 26 and so on –
2 TWO rows Col 2 (white)
6 rows Col 1 (red)
2 TWO rows Col 2 (white)
Then pick up the loops on the previous white on needle 5, then 11, 17, 23, 29 and so on –
2 TWO rows Col 2 (white

I did two ruler’s worth, that’s easiest for me.

I used a thinner red and slightly thicker white. I used the main carriage with the white, T6.1 and the intarsia carriage for the red, T4.1. Starts with 6 R red, 4R white, then begin the repeats 6R red, but only 2 TWO rows white.





Per the Purls of Joy pamphlet, start on the right hand side on needle 2, then every 6th. I used the 7 prong tool to make it easy to mark out every 6th.




I liked the top two white only ones, you might like a different set, but only one loop


Here are the two loops I mean.



Knit two more rows.


Then repeat with start on the RH side on needle 5 then every 6th.

 And here are some using the intaria carriage notes


I moved all the needles out to hold them pushed them back so the latches are near the gate pages, make sure all the latches are open then do the 6 rows of red. It was easier to have the white on the main carriage, however if the fluffy yarn is going to be used, then the intarsia will have to be used and it's a bit more work to set up the needles for the smock threads.


And here's what the other side looks like:
